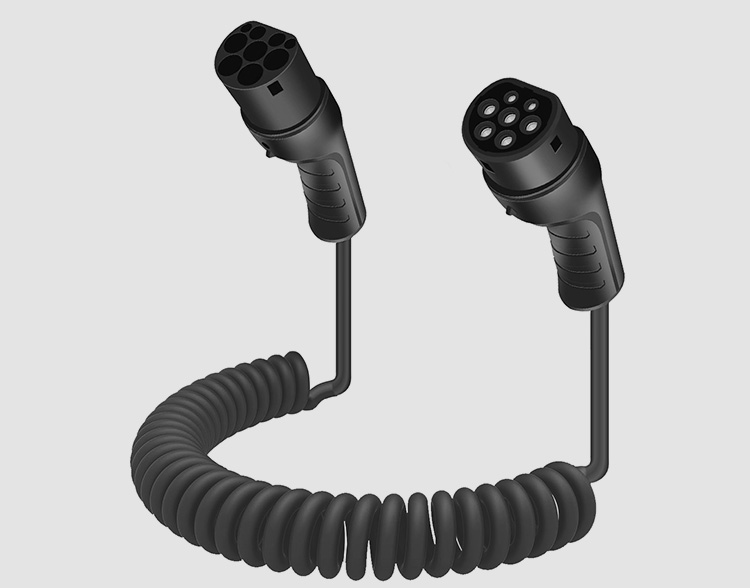

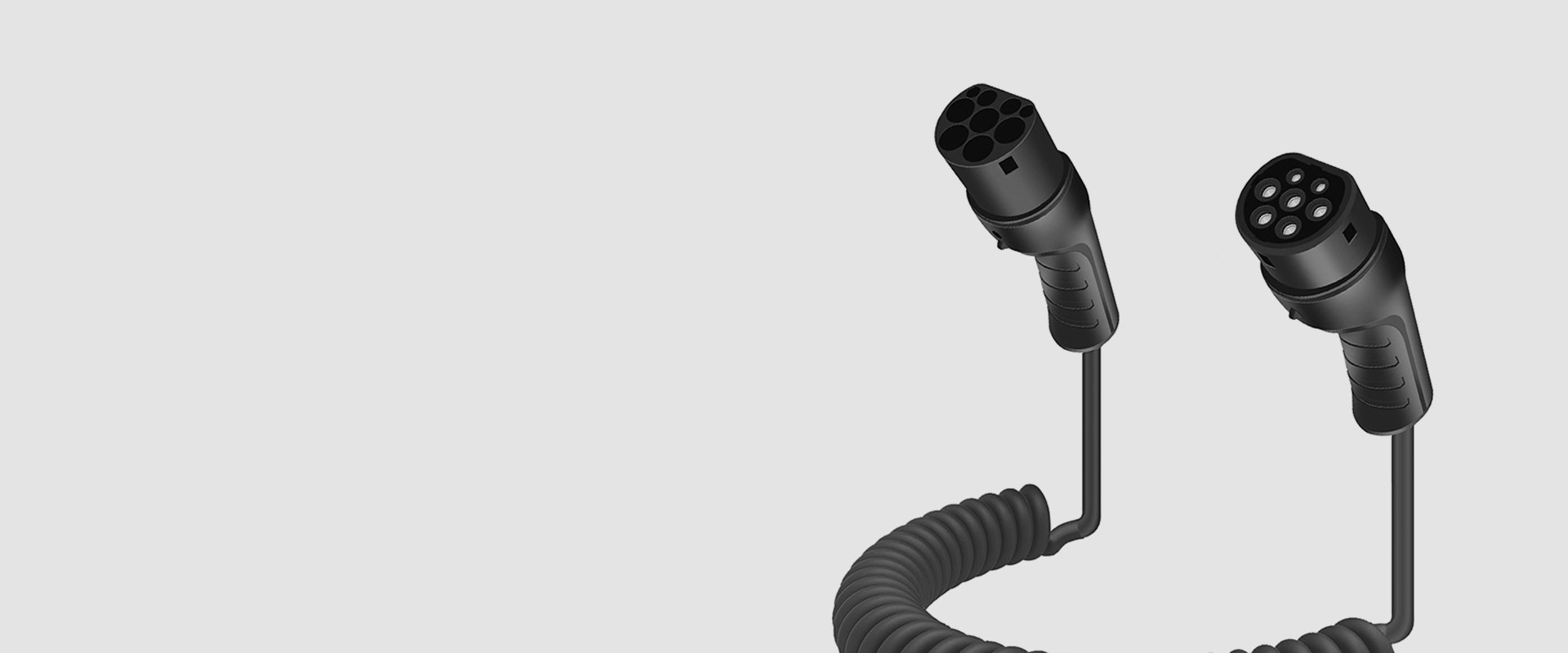

EV Charging Spiral Cable

TECHNICAL DETAILS

▪ Ingress Protection:mated-IP65,unmated-IP54
▪ Durability: ≥10,000 Connections
▪ Firmness: Resistant to running over by a car for plug(pressure up to 2 tonnes)
▪ Compatible with Battery Electric Vehicle(BEV) and Plug in Hybrid Electric Vehicle(HPEV) that have a CCS2 or Type 2 charging connection and can be charged with alternating current
▪ Cable assembly standard:EN 62196-1:2014 / EN 62196-2:2017 / IEC 61851-1:2019
▪ Plug&Connector standard:EN 62196-1:2014 / EN 62196-2:2017 / EN 17186:2019
▪ Cable standard: EN 50620:2017+A1
▪ Operating Temperature:-30 ~+50°C
▪ PUR feature
Flame retardant( IEC60332-1)
Halogen free(IEC 60754-1/2)
Oil resistant(IEC 60811-404)
Acid-proof alkaline(IEC 60811-404)
UV resistant(IEC 50289-4-17)
Low-temperature impact(IEC 60811-506)
Water absorption (1EC 60811-402)
Hydrolysis resistant(IEC 60811-2-1)

Application and precautions

Whether at a charging station or at a conventional safety socket - your electric or hybrid car can be charged almost anywhere nowadays. To make the connection, you always need a suitable charging cable or charger. Here UNO® offers the right products to make your charging process as easy and flexible as possible.
