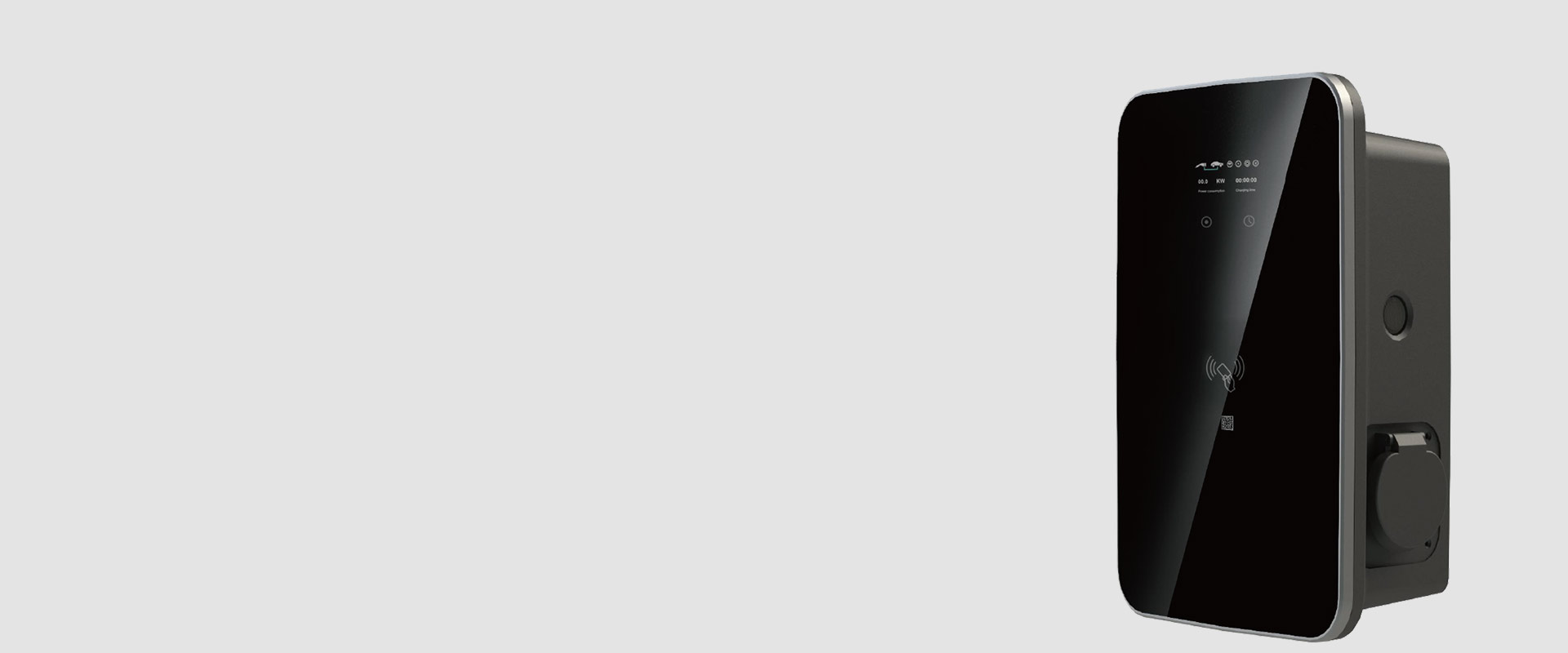

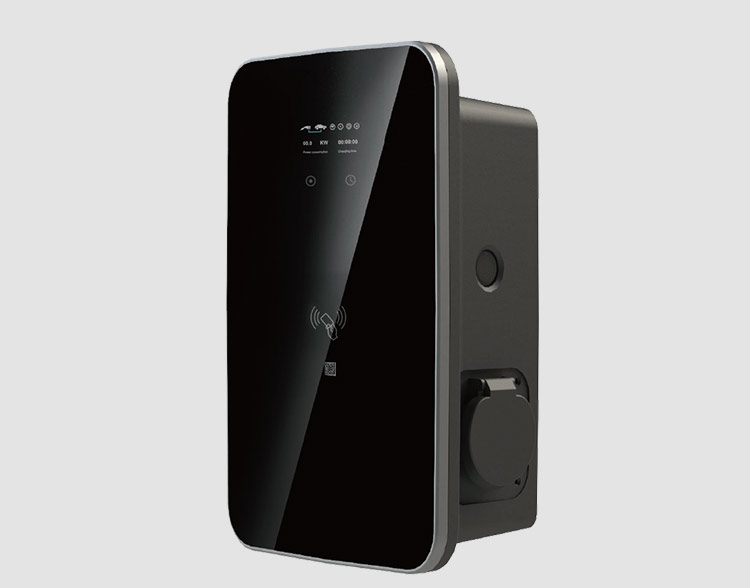

With socket, 11KW

Wall Mounted EV Charging Station

AC Input Connection:3P + N + PE (L1.L2.L3.N.PE)
AC Input Frequency:50/60 Hz
Internal Residual Current Detection:Type A + DC 6mA(Type B RCD)
Shell Material:PC / ABS
HM Interface:4.3 inch LCD Screen
Function:RFID Card (Optional),4G, WIFI, APP(Apple or Google Store)

TECHNICAL DETAILS

  • ▪ Standard:IEC 61851-1,1EC 61851-22
    ▪ Max. Power:11KW
    ▪ Rated Current:16A
    ▪ Input Voltage:3-Phase AC 400V±10%
    ▪ AC Input Connection:3P + N + PE (L1.L2.L3.N.PE)
    ▪ AC Input Frequency:50/60 Hz
    ▪ Internal Residual Current Detection:Type A + DC 6mA( Type B RCD)
    ▪ Shell Material:PC / ABS
    ▪ HM Interface:4.3 inch LCD Screen
    ▪ Function:RFID Card (Optional),4G , WIFI , APP (Apple or Google Store )
    ▪ PEN Function:Protective Earth and Neutral ( Optional )
    ▪ Charging Mode:Delayed Charging, Remole Control to Start , Wipe Card to Start
  • ▪ States indicating:LED indicating light in Red, Green and Blue
    ▪ Working humidity:5% - 95% without condensation
    ▪ Operating Temperature:-30°C to +50°C
    ▪ MTBF:100000 hours
    ▪ Protection Degree:IP65
    ▪ Application place:Indoor / Outdoor
    ▪ Dimensions:330mm (L)X 230mm (W) X 115mm (H)
    ▪ Certification:TUV,CE,UKCA Approved
    ▪ Protection:
    Leakage Current Protection ，Over Current Protection，Over Voltage Protection   Under Voltage Protection，Over Temperature Protection，Overload Protection Temperature Protection, Short Circuit Protection，Surge Protection

Application and precautions

Whether at a charging station or at a conventional safety socket - your electric or hybrid car can be charged almost anywhere nowadays. To make the connection, you always need a suitable charging cable or charger. Here UNO® offers the right products to make your charging process as easy and flexible as possible.
